Mobile crane MINIDREL 75S_HG
Mold lifting machine with capacity up to 7.500 kg (16,500 lbs).

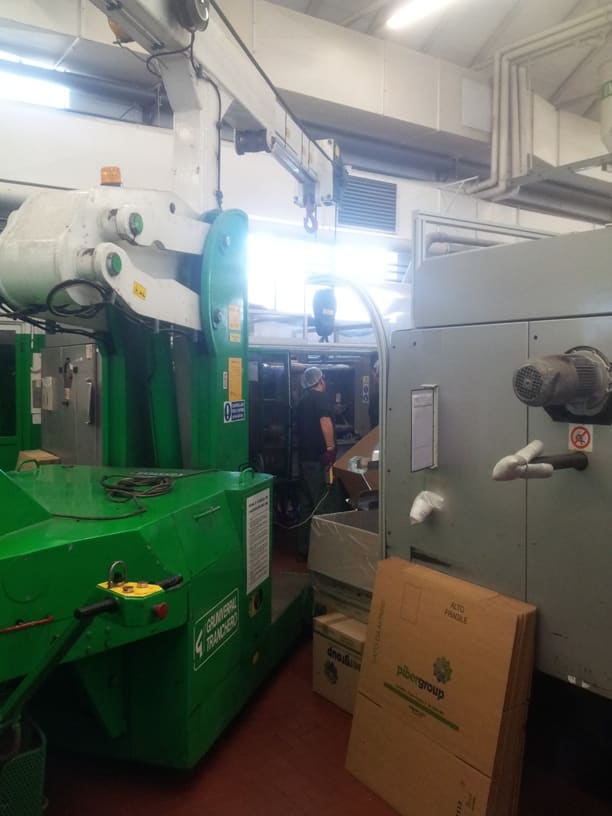

The MINIDREL 75S_HG is the mold lifting machine designed to lift and carry loads up to 7.500 kg (16,500 lbs).
Ideal for use in plastics and mold lifting and industrial maintenance applications.
The small size of the MINIDREL 75S_HG crane makes it possible to achieve a high level of performance in small spaces.
Video
Technical features
| Features | Serie MINIDREL 75S_HG |
|---|---|
| Maximum load capacity | 7.500 Kg/ 16,500 lbs |
| Standard min. hook’s height from the ground | 2.600 mm |
| Standard max. hook’s height from the ground | 5.200 mm |
| Possibility to extend height up to (option) | – |
| Standard max. telescopic extension | 1.350 mm |
| Capacity at standard max. telescopic extension | 7.500 Kg/ 16,500 lbs |
| Possibility to extend telecopic extension up to (option) | 3.600 mm |
| Capacity at max.telescopic extension (point 7) | 2.400 Kg/ 5291 lbs |
| Rotation (option) | – |
| Wheelbase | 2.620 mm |
| Dimensions- lenght | 3.250 mm |
| Dimensions- width | 1.490 mm |
| Dimensions- height | 3.400 mm |
| Adjustable speed from / to | From 0 to 60 m/min |
| Max. surmountable slope ( unloaded ) | 8% |
| Max. surmountable slope ( loaded ) | 3% |
| Front wheels | 2 x Ø300 x 140 mm |
| Rear driving wheel | 2 x Ø 450 x 110 mm |
| Wheels material | Polyurethane |
| Drive | REAR WHEEL |
| Total weight: | 10.100 Kg/ 22,266 lbs |
| Electric motor power | 8,0 KW / 48 cc. |
| Hardened battery (standard) | 560 Ah / 48V |
| Battery charger on board | 380 /440 V -50/60 Hz |
| Lead acid battery | ● |
| Gel battery | ○ |
| Additional autonomy of battery | ○ |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Made in accordance (not certified) to standard UL508 A | ● |
| Certification (issued by Third Party) to standard UL508 A | ○ |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User Manual and technical documentation | ● |
| Possibility to do all movements with max. Load | ● |
