Mini crane GB 300_TR STANDARD

Mobile cranes for lifting loads up to 300 kg.
/, Mobile cranes/Mini crane GB 300_TR STANDARD
Mobile cranes for lifting loads up to 300 kg.

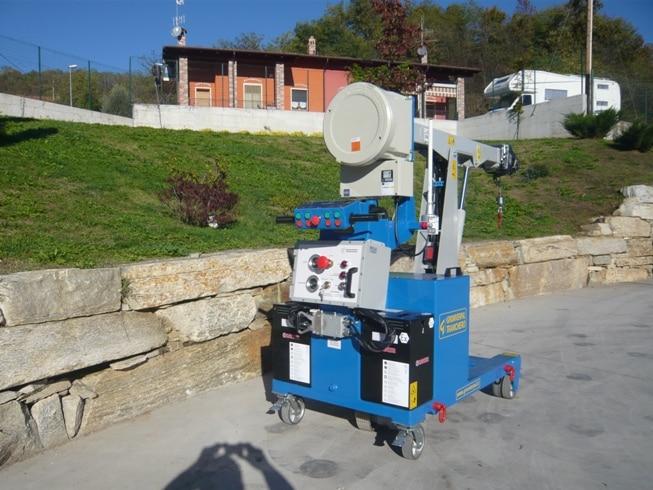

Mini crane GB 300_TR STANDARD

For lifting loads up to 300 kg (600 lbs).

The GB 300_TR STANDARD is the mobile crane for lifting loads designed to lift and carry loads of up to 300 kg (600 lbs).
Thanks to its iper compact dimensions and high lifting capacity this crane lets to work in very limited spaces for making all type of production and maintenance activity.

Technical features

FeaturesSerie GB 300_TR STANDARD
Maximum load capacity300 Kg/600 lbs
Standard min. hook’s height from the ground200 mm
Standard max. hook’s height from the ground3.200 mm
Possibility to extend height up to (option)
Standard max. telescopic extension1.960 mm
Capacity at standard max. telescopic extension180 Kg/396 lbs
Possibility to extend telecopic extension up to (option)
Capacity at max.telescopic extension (point 7)
Rotation (option)150°
Wheelbase1.000 mm
Dimensions- lenght1.400 mm
Dimensions- width820 mm
Dimensions- height1.600 mm
Adjustable speed from / toFrom 0 to 40 m/min
Max. surmountable slope ( unloaded )8%
Max. surmountable slope ( loaded )3%
Front wheels4 x Ø 160 x 60 mm
Rear driving wheel1 x Ø 160 x 80 mm
Wheels materialPolyurethane
Total weight:950 Kg/2095 lbs
Electric motor power1,0 KW / 12 V.
Hardened battery (standard)200 Ah / 12 V
Battery charger on board110 / 240 V -50/60 Hz
Lead acid battery
Gel battery
Additional autonomy of battery
Proportional control on board of all mouvements
Certification to standard 2006/42 CE
Made in accordance (not certified) to standard UL508 A
Certification (issued by Third Party) to standard UL508 A
Drive hydraulic unit
Automatic braking system
Overloading safety system
Pressure safety valves on each movements
Safety emergency electric devices
Winch (lifting capacity on demand)
Wireless remote control (capacity on demand)
User Manual and technical documentation
Possibility to do all movements with max. Load
