Mobile crane MINIDREL 20SL_HG
Mold lifting machine with capacity up to 2.000 kg (4400 lbs).
The MINIDREL 20SL_HG is the mobile crane designed to lift and carry loads up to 2.000 kg (4400 lbs).

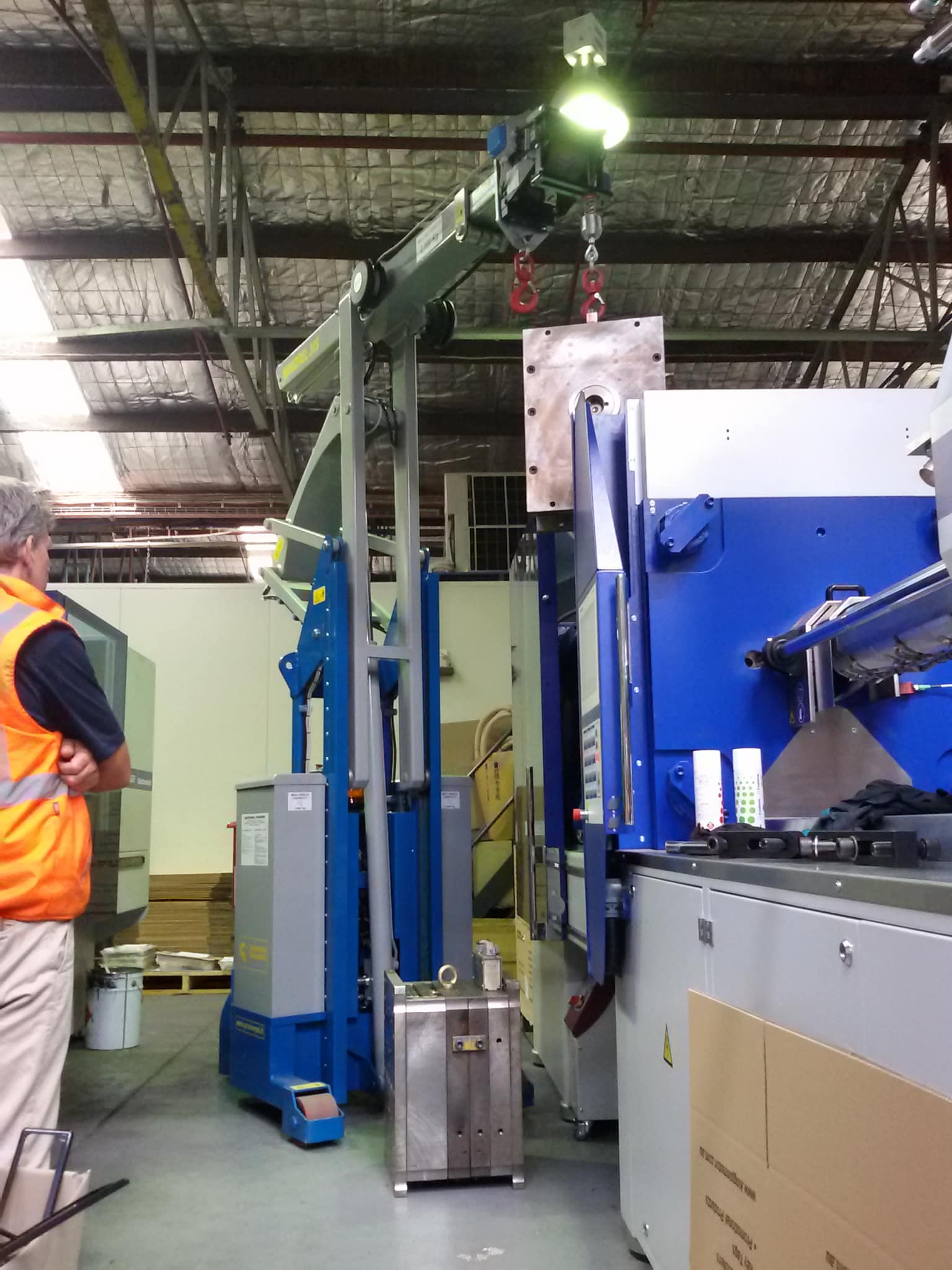

Ideal for use in plastics and mold lifting and industrial maintenance applications.
The small size of the MINIDREL 20SL_HG crane makes it possible to achieve a high level of performance in small spaces.
Technical features
| Features | Serie MINIDREL 20SL_HG |
|---|---|
| Maximum load capacity | 2.000 Kg/ 4400 lbs |
| Standard min. hook’s height from the ground | 1.800 mm |
| Standard max. hook’s height from the ground | 3.600 mm |
| Possibility to extend height up to (option) | – |
| Standard max. telescopic extension | 1.500 mm |
| Capacity at standard max. telescopic extension | 1.000 Kg/ 2205 lbs |
| Possibility to extend telecopic extension up to (option) | 5.000 mm |
| Capacity at max.telescopic extension (point 7) | 225 Kg/ 496 lbs |
| Rotation (option) | – |
| Wheelbase | 1.500 mm |
| Dimensions- lenght | 1.860 mm |
| Dimensions- width | 950 mm |
| Dimensions- height | 2.320 mm |
| Adjustable speed from / to | From 0 to 60 m/min |
| Max. surmountable slope ( unloaded ) | 8% |
| Max. surmountable slope ( loaded ) | 3% |
| Front wheels | 2 x Ø 160 x 80 mm |
| Rear driving wheel | 1 x Ø 450 x 110 mm |
| Wheels material | Polyurethane |
| Drive | REAR WHEEL |
| Total weight: | 3.600 Kg/ 7936 lbs |
| Electric motor power | 3,0 KW / 24 cc. |
| Hardened battery (standard) | 360 Ah / 24 V |
| Battery charger on board | 110 / 240 V -50/60 Hz |
| Lead acid battery | – |
| Gel battery | ● |
| Additional autonomy of battery | ○ |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Made in accordance (not certified) to standard UL508 A | ● |
| Certification (issued by Third Party) to standard UL508 A | ○ |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User Manual and technical documentation | ● |
| Possibility to do all movements with max. Load | ● |
