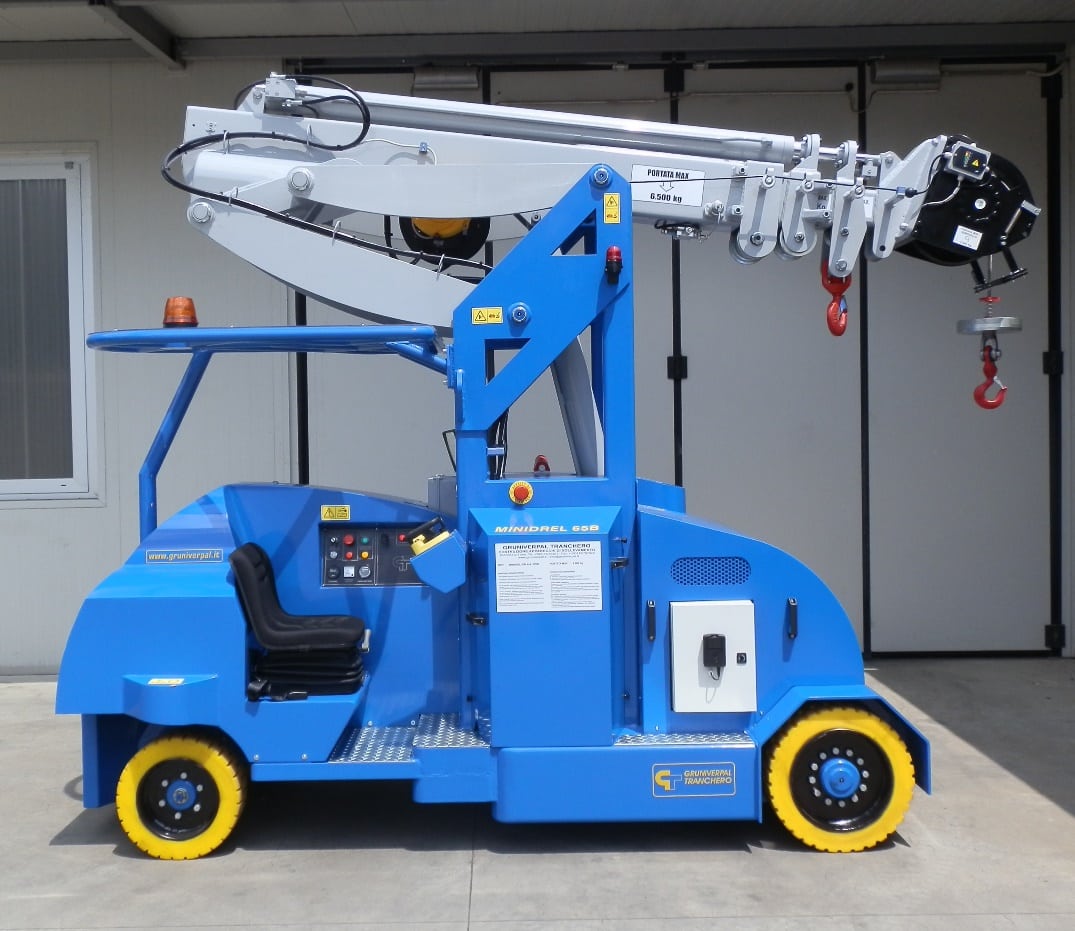

Mini crane MINIDREL 65B_WVR
For lifting loads up to 6.500 kg (14,330 lbs).
The MINIDREL 65B_WVR is the mobile crane for lifting loads designed to lift and carry loads of up to 6.500 kg (14,330 lbs).
Thanks to a patented lifting system that guarantees a lifting capacity of up to 40% more than traditional cranes of equal size.
Technical features
| Features | Serie MINIDREL 65B_WVR |
|---|---|
| Maximum load capacity | 6.500 Kg/ 14,330 lbs |
| Standard min. hook’s height from the ground | 1.200 mm |
| Standard max. hook’s height from the ground | 7.500 mm |
| Possibility to extend height up to (option) | 8.500 mm |
| Standard max. telescopic extension | 4.700 mm |
| Capacity at standard max. telescopic extension | 1.150 Kg/2535 lbs |
| Possibility to extend telecopic extension up to (option) | 5.600 mm |
| Capacity at max.telescopic extension (point 7) | 950 Kg/2094 lbs |
| Rotation (option) | – |
| Wheelbase | 2.530 mm |
| Dimensions- lenght | 3.300 mm |
| Dimensions- width | 1.350 mm |
| Dimensions- height | 2.520 mm / 2.920 mm |
| Adjustable speed from / to | From 0 to 100 m/min |
| Max. surmountable slope ( unloaded ) | 16% |
| Max. surmountable slope ( loaded ) | 8% |
| Front wheels | 2 x ø 533 x 178 mm |
| Rear driving wheel | 2 x ø 457x 152 mm |
| Wheels material | Cushion / Polyurethane |
| Drive | FOUR WHEELS |
| Total weight: | 7.200 Kg/ 15,870 lbs |
| Electric motor power | 8,0 KW / 48 cc. |
| Hardened battery (standard) | 600 Ah / 48V |
| Battery charger on board | 380 /440 V -50/60 Hz |
| Lead acid battery | ● |
| Gel battery | ○ |
| Additional autonomy of battery | ○ |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Made in accordance (not certified) to standard UL508 A | ● |
| Certification (issued by Third Party) to standard UL508 A | ○ |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User Manual and technical documentation | ● |
| Possibility to do all movements with max. Load | ● |
