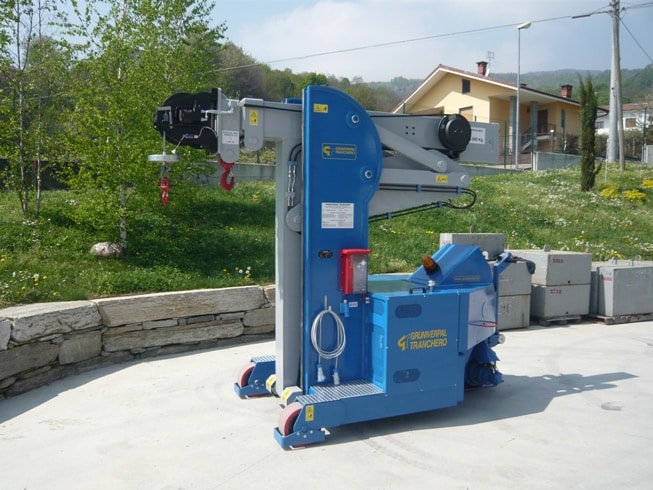

Mobile crane MINIDREL 40S_HG
Mold lifting machine with capacity up to 4.000 kg (8800 lbs).

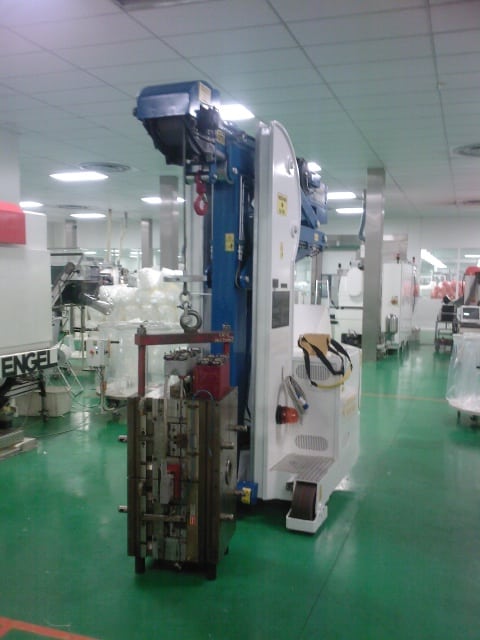

The MINIDREL 40S_HG is the mold lifting machine designed to lift and carry loads up to 4.000 kg (8800 lbs). Ideal
for use in plastics and mold lifting and industrial maintenance applications.
The small size of the MINIDREL 40S_HG crane makes it possible to achieve a high level of performance in small spaces.
Technical features
| Features | Serie MINIDREL 40S_HG |
|---|---|
| Maximum load capacity | 4.000 Kg/ 8800 lbs |
| Standard min. hook’s height from the ground | 2.400 mm |
| Standard max. hook’s height from the ground | 4.800 mm |
| Possibility to extend height up to (option) | 5.000 mm |
| Standard max. telescopic extension | 1.350 mm |
| Capacity at standard max. telescopic extension | 4.000 Kg/ 8800 lbs |
| Possibility to extend telecopic extension up to (option) | 3.600 mm |
| Capacity at max.telescopic extension (point 7) | 1.350 Kg/ 2976 lbs |
| Rotation (option) | – |
| Wheelbase | 2.000 mm |
| Dimensions- lenght | 2.470 mm |
| Dimensions- width | 1.430 mm |
| Dimensions- height | 2.850 / 2.950 / 3.050 mm |
| Adjustable speed from / to | From 0 to 60 m/min |
| Max. surmountable slope ( unloaded ) | 8% |
| Max. surmountable slope ( loaded ) | 3% |
| Front wheels | 2 x Ø300 x 140 mm |
| Rear driving wheel | 1 x Ø 450 x 180 mm |
| Wheels material | Polyurethane |
| Drive | REAR WHEEL |
| Total weight: | 6.300 Kg/ 13,889 lbs |
| Electric motor power | 5,0 KW / 24 cc. |
| Hardened battery (standard) | 420 Ah / 24 V |
| Battery charger on board | 110 / 240 V -50/60 Hz |
| Lead acid battery | ● |
| Gel battery | ○ |
| Additional autonomy of battery | ○ |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Made in accordance (not certified) to standard UL508 A | ● |
| Certification (issued by Third Party) to standard UL508 A | ○ |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User Manual and technical documentation | ● |
| Possibility to do all movements with max. Load | ● |
