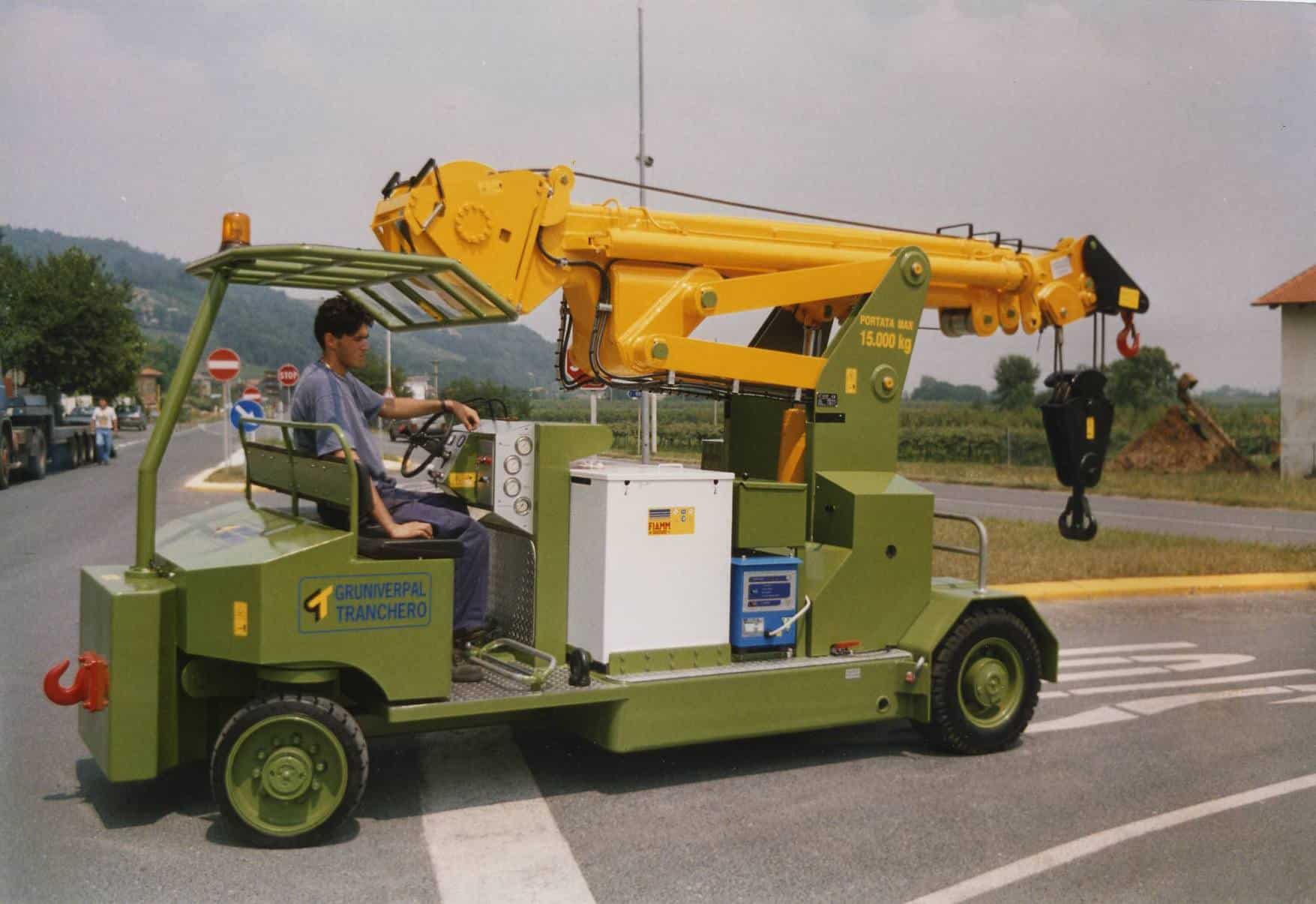

Mini crane MINIDREL 150B_R
For lifting loads up to 15.000 kg (33,000 lbs).
The MINIDREL 150B_R is the mobile crane for lifting loads designed to lift and carry loads of up to 15.000 kg (33,000 lbs).
Thanks to a patented lifting system that guarantees a lifting capacity of up to 40% more than traditional cranes of equal size.
Technical features
Features | Serie MINIDREL 150B_R |
---|---|
Maximum load capacity | 15.000 Kg/33,000 lbs |
Standard min. hook’s height from the ground | 1.200 mm |
Standard max. hook’s height from the ground | 7.500 mm |
Possibility to extend height up to (option) | 8.500 mm |
Standard max. telescopic extension | 4.500 mm |
Capacity at standard max. telescopic extension | 3.000 Kg/ 6614 lbs |
Possibility to extend telecopic extension up to (option) | 5.500 mm |
Capacity at max.telescopic extension (point 7) | 2.100 Kg/ 4630 lbs |
Rotation (option) | – |
Wheelbase | 3.250 mm |
Dimensions- lenght | 4.250 mm |
Dimensions- width | 1.850 mm |
Dimensions- height | 2.650 mm |
Adjustable speed from / to | From 0 to 100 m/min |
Max. surmountable slope ( unloaded ) | 16% |
Max. surmountable slope ( loaded ) | 3% |
Front wheels | 2 x ø711 x 356 mm |
Rear driving wheel | 2 x ø533 x 178 mm |
Wheels material | Cushion |
Drive | FOUR WHEELS |
Total weight: | 14.600 Kg 32,187 lbs |
Electric motor power | 16,0 KW / 78 cc. |
Hardened battery (standard) | 725 Ah / 78V |
Battery charger on board | 380 /440 V -50/60 Hz |
Lead acid battery | ● |
Gel battery | ○ |
Additional autonomy of battery | ○ |
Proportional control on board of all mouvements | ● |
Certification to standard 2006/42 CE | ● |
Made in accordance (not certified) to standard UL508 A | ● |
Certification (issued by Third Party) to standard UL508 A | ○ |
Drive hydraulic unit | ● |
Automatic braking system | ● |
Overloading safety system | ● |
Pressure safety valves on each movements | ● |
Safety emergency electric devices | ● |
Winch (lifting capacity on demand) | ○ |
Wireless remote control (capacity on demand) | ○ |
User Manual and technical documentation | ● |
Possibility to do all movements with max. Load | ● |
