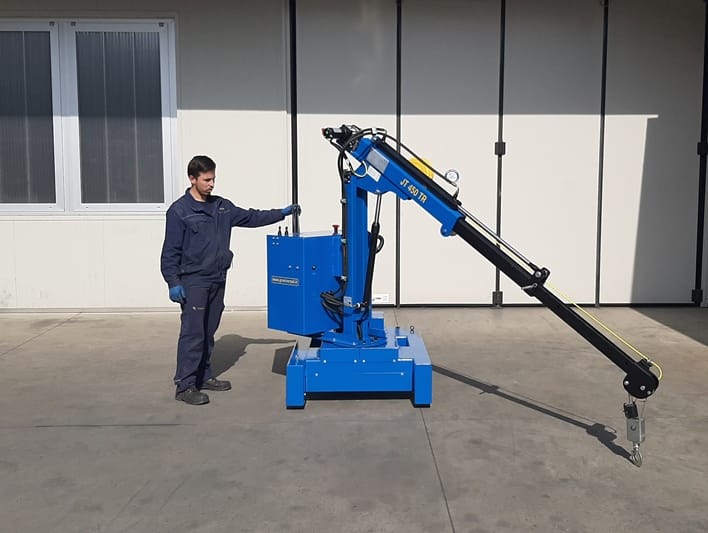

Mini crane JT450_TR (with rotation)
Electric or semi-automatic mini cranes with capacity up to 450 kg (990 lbs).
The JT450_TR (with rotation)is the electric mini crane of the «JT-line cranes» range.
The new JT -LINE series is the perfect solution of mini-crane that, with a limited investment, lets to carry our any type of lifting (industrial maintenance, tooling of CNC or automatic machines, mould lifting, activities on construction sites, etc.) with the maximum safety and flexibility.
- 12 months warranty on all components
- Counter balanced shop crane
- Tested 25% overload before delivery
- With double action hydraulic pump, fast and easy / Allows to work close to a machine
- Unique operate handle, brake design, mobile and foldable
Technical features
| Features | JT450_TR (with rotation) |
|---|---|
| Maximum load capacity | 450 Kg/ 990 lbs |
| Standard min. hook’s height from the ground | 2.840 mm |
| Standard max. hook’s height from the ground | 2.005 mm |
| Capacity at standard max. telescopic extension | 120 Kg/ 260 lbs |
| Drive | Electric |
| Lifting | Electric |
| Telescopicing | Electric |
| Rotation 330° | Electric |
| Dimensions- lenght | 1.310 mm |
| Dimensions- width | 1.010 mm |
| Dimensions- height | 1.845 mm |
| Adjustable speed from / to | From 0 to 40 m/min |
| Max. surmountable slope ( unloaded ) | 5% |
| Max. surmountable slope ( loaded ) | 3% |
| Front wheels | 2 x Ø 200 mm |
| Rear driving wheel | x Ø 250 mm + 2 x Ø 60 mm |
| Wheels material | Polyurethane |
| Total weight: | 1.200 kg |
| Electric motor power | 2,2 KW / 24 V + 0,7 KW / 24 V |
| Hardened battery (standard) | 80Ah / 12 V |
| Battery charger on board | 110 / 240 V -50/60 Hz |
| Gel battery | ● |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ● |
| Possibility to do all movements with max. Load | ● |
