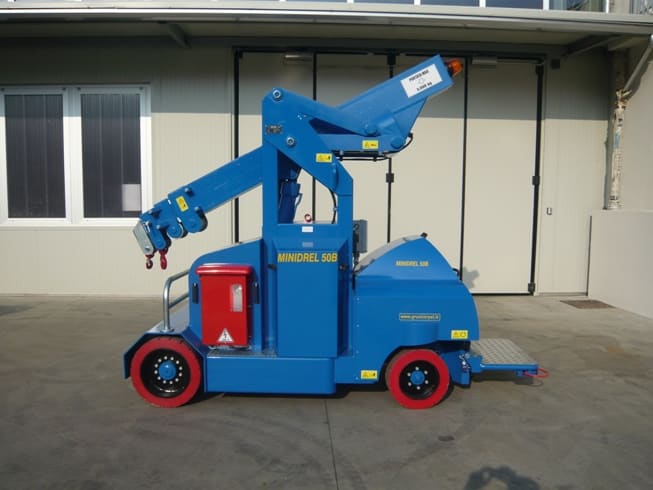

Electric crane MINIDREL 50B_SRR

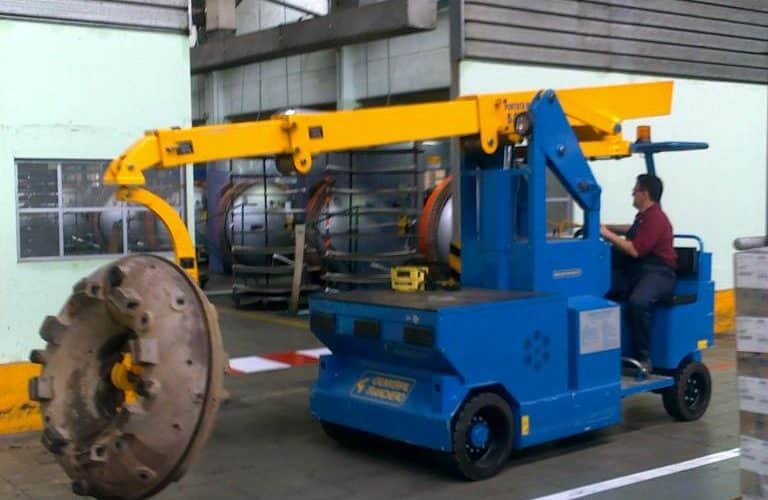

For handling molds in the tire production sector.
The MINIDREL 50B_SRR is the crane for handling molds, ideal for use in the tire production sector.
The reduced dimensions of the GT cranes electric cranes allow an agile handling in internal spaces such as industrial ones.
Load capacity up to 5.000 kg (11,000 lbs).
Technical features
| Features | Serie MINIDREL 50B_SRR |
|---|---|
| Maximum load capacity | 5.000 Kg/ 11,000 lbs |
| Standard min. hook’s height from the ground | 1.200 mm |
| Standard max. hook’s height from the ground | 7.500 mm |
| Possibility to extend height up to (option) | 8.500 mm |
| Standard max. telescopic extension | 4.500 mm |
| Capacity at standard max. telescopic extension | 1.000 Kg/ 2205 lbs |
| Possibility to extend telecopic extension up to (option) | 5.500 mm |
| Capacity at max.telescopic extension (point 7) | 600 Kg/ 1320 lbs |
| Rotation (option) | – |
| Wheelbase | 2.180 mm |
| Dimensions- lenght | 3.060 mm |
| Dimensions- width | 1.350 mm |
| Dimensions- height | 2.520 mm / 2.650 mm |
| Adjustable speed from / to | From 0 to 100 m/min |
| Max. surmountable slope ( unloaded ) | 16% |
| Max. surmountable slope ( loaded ) | 8% |
| Front wheels | 2 x ø 533 x 178 mm |
| Rear driving wheel | 2 x ø 457x 152 mm |
| Wheels material | Cushion |
| Drive | FOUR WHEELS |
| Total weight: | 5.700 Kg/ 12,566 lbs |
| Electric motor power | 5,0 KW / 48 cc. |
| Hardened battery (standard) | 460 Ah / 48V |
| Battery charger on board | 380 /440 V -50/60 Hz |
| Lead acid battery | ● |
| Gel battery | ○ |
| Additional autonomy of battery | ○ |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Made in accordance (not certified) to standard UL508 A | ● |
| Certification (issued by Third Party) to standard UL508 A | ○ |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User Manual and technical documentation | ● |
| Possibility to do all movements with max. Load | ● |
