Electric crane for handling molds in the tire production sector Minidrel 75S_ARR

Electric craneMINIDREL 75S_ARR

For handling molds in the tire production sector.

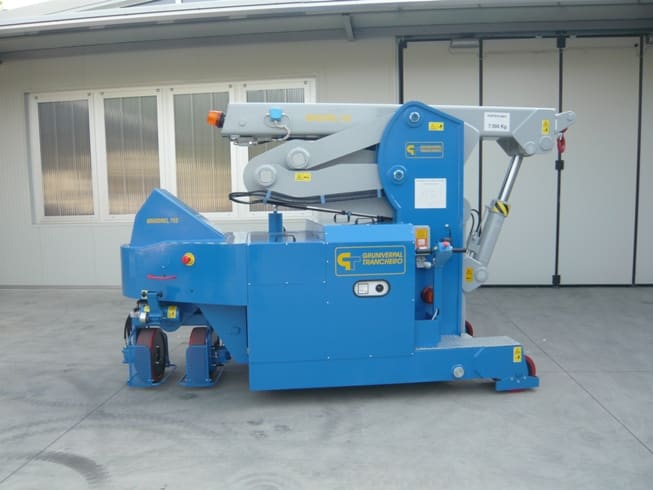

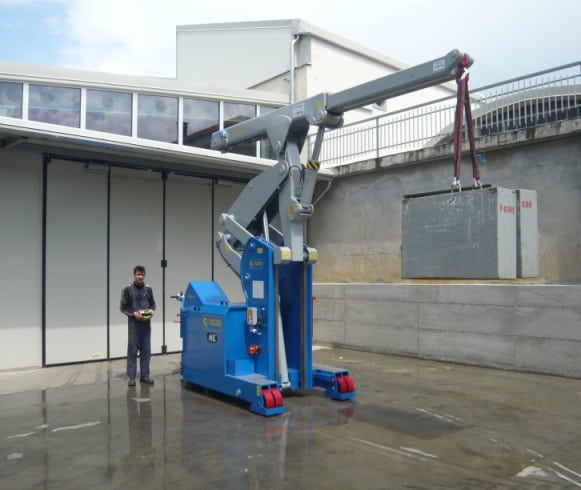

The MINIDREL 75S_ARR is the crane for handling molds, ideal for use in the tire production sector.
The reduced dimensions of the GT cranes electric cranes allow an agile handling in internal spaces such as industrial ones.
Load capacity up to 7.500 kg (16,500 lbs).



Technical features

FeaturesSerie MINIDREL 75S_ARR
Maximum load capacity7.500 Kg/ 16,500 lbs
Standard min. hook’s height from the ground100 mm
Standard max. hook’s height from the ground3.600 mm
Possibility to extend height up to (option)
Standard max. telescopic extension1.350 mm
Capacity at standard max. telescopic extension7.500 Kg/ 16,500 lbs
Possibility to extend telecopic extension up to (option)3.100 mm
Capacity at max.telescopic extension (point 7)3.200 Kg/ 7050 lbs
Rotation (option)
Wheelbase2.620 mm
Dimensions- lenght3.250 mm
Dimensions- width1.490 mm
Dimensions- height2.200 mm
Adjustable speed from / toFrom 0 to 60 m/min
Max. surmountable slope ( unloaded )8%
Max. surmountable slope ( loaded )3%
Front wheels4 x Ø300 x 140 mm
Rear driving wheel2 x Ø 450 x 110 mm
Wheels materialPolyurethane
DriveREAR WHEEL
Total weight:10.300 Kg/ 22,700 lbs
Electric motor power8,0 KW / 48 cc.
Hardened battery (standard)560 Ah / 48V
Battery charger on board380 /440 V -50/60 Hz
Lead acid battery
Gel battery
Additional autonomy of battery
Proportional control on board of all mouvements
Certification to standard 2006/42 CE
Made in accordance (not certified) to standard UL508 A
Certification (issued by Third Party) to standard UL508 A
Drive hydraulic unit
Automatic braking system
Overloading safety system
Pressure safety valves on each movements
Safety emergency electric devices
Winch (lifting capacity on demand)
Wireless remote control (capacity on demand)
User Manual and technical documentation
Possibility to do all movements with max. Load
