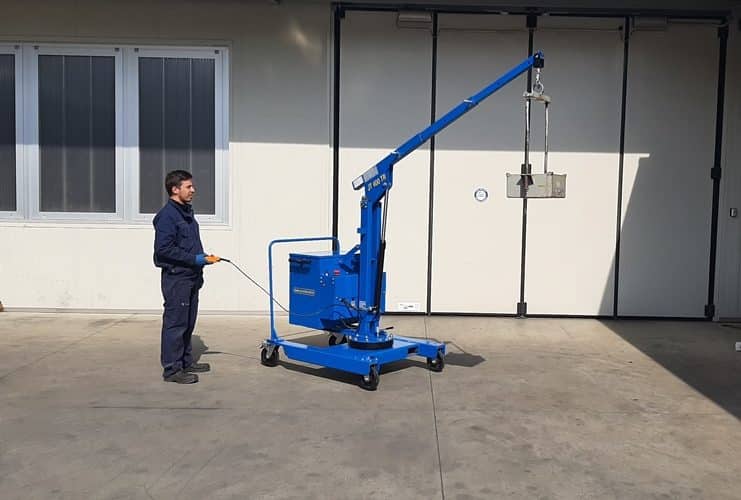

Mini crane JT400_TR (with rotation)
Electric or semi-automatic mini cranes with capacity up to 400 kg (880 lbs).
The JT400_TR (with rotation) is the electric mini crane of the «JT-line cranes» range.
The new JT -LINE series is the perfect solution of mini-crane that, with a limited investment, lets to carry our any type of lifting (industrial maintenance, tooling of CNC or automatic machines, mould lifting, activities on construction sites, etc.) with the maximum safety and flexibility.
- 12 months warranty on all components
- Counter balanced shop crane
- Tested 25% overload before delivery
- With double action hydraulic pump, fast and easy / Allows to work close to a machine
- Unique operate handle, brake design, mobile and foldable
Technical features
| Features | JT400_TR (with rotation) |
|---|---|
| Maximum load capacity | 400 Kg/ 880 lbs |
| Standard min. hook’s height from the ground | 2.600 mm |
| Standard max. hook’s height from the ground | 1.530 mm |
| Capacity at standard max. telescopic extension | 150 Kg/ 330 lbs |
| Drive | Manual |
| Lifting | Electric |
| Telescopicing | Manual |
| Rotation 330° | Manual |
| Dimensions- lenght | 1.400 mm |
| Dimensions- width | 985 mm |
| Dimensions- height | 1.780 mm |
| Max. surmountable slope ( unloaded ) | 5% |
| Max. surmountable slope ( loaded ) | 3% |
| Front wheels | 2 x Ø 200 mm |
| Rear driving wheel | 2 x Ø 200 mm |
| Wheels material | Polyurethane |
| Total weight: | 660 kg |
| Electric motor power | 0,8 KW / 12 V |
| Hardened battery (standard) | 80Ah / 12 V |
| Battery charger on board | 110 / 240 V -50/60 Hz |
| Gel battery | ● |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Possibility to do all movements with max. Load | ● |
