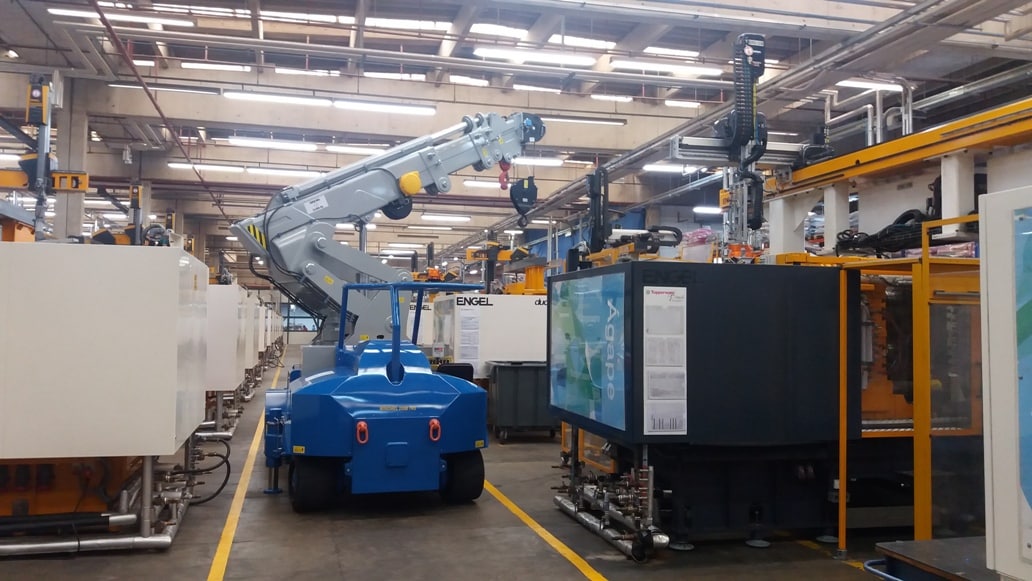

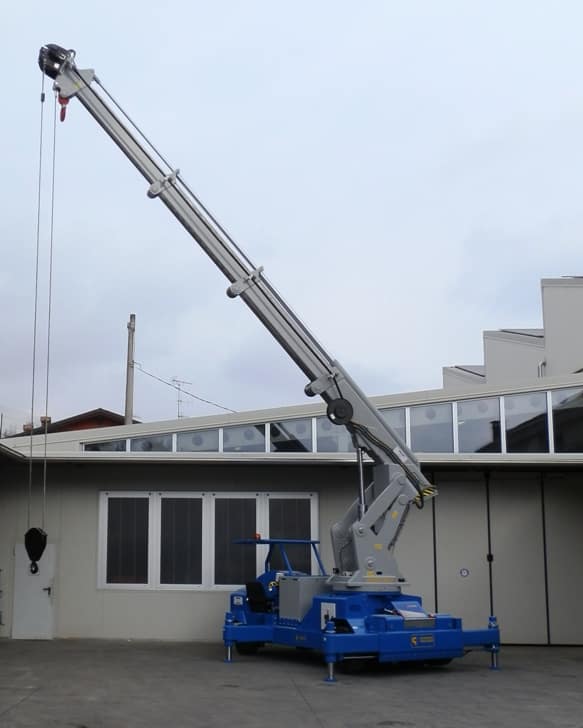

Mini crane MINIDREL 250B_TRS
For lifting loads up to 25.000 kg (55,100 lbs).
The MINIDREL 250B_TRS is the mobile crane for lifting loads designed to lift and carry loads of up to 25.000 kg (55,100 lbs).
Thanks to a patented lifting system that guarantees a lifting capacity of up to 40% more than traditional cranes of equal size.
Technical features
| Features | Serie MINIDREL 250B_TRS |
|---|---|
| Maximum load capacity | 25.000 Kg/ 55,100 lbs |
| Standard min. hook’s height from the ground | 1.200 mm |
| Standard max. hook’s height from the ground | 8.500 mm |
| Possibility to extend height up to (option) | 10.500 mm |
| Standard max. telescopic extension | 5.500 mm |
| Capacity at standard max. telescopic extension | 5.400 Kg/ 11905 lbs |
| Possibility to extend telecopic extension up to (option) | 7.200 mm |
| Capacity at max.telescopic extension (point 7) | 3.600 Kg/ 7937 lbs |
| Rotation (option) | 210° |
| Wheelbase | 3.250 mm |
| Dimensions- lenght | 4.550 mm |
| Dimensions- width | 2.300 mm |
| Dimensions- height | 2.890 mm |
| Adjustable speed from / to | From 0 to 100 m/min |
| Max. surmountable slope ( unloaded ) | 16% |
| Max. surmountable slope ( loaded ) | 3% |
| Front wheels | 4 x ø711 x 305 mm |
| Rear driving wheel | 2 x ø660 x 356 mm |
| Wheels material | Cushion |
| Drive | SIX WHEELS |
| Total weight: | 24.400 Kg/ 53,790 lbs |
| Electric motor power | 24,0 KW / 78 cc. |
| Hardened battery (standard) | 900 Ah / 78V |
| Battery charger on board | 380 /440 V -50/60 Hz |
| Lead acid battery | ● |
| Gel battery | ○ |
| Additional autonomy of battery | ○ |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Made in accordance (not certified) to standard UL508 A | ● |
| Certification (issued by Third Party) to standard UL508 A | ○ |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User Manual and technical documentation | ● |
| Possibility to do all movements with max. Load | ● |
